The argc and argv parameters represent the argument count and an array of variables representing parts of the request URL as follows: The performAction() method in file Controller.h is where interaction with model and view classes occur.
#Arduino camera ethernet how to#
Examine the coding examples to see how to do this.
#Arduino camera ethernet code#
It is possible to organise views in a modular way to achieve a good degree of code reuse, with performance critical views stored in program memory, and others on SD card. Directive can appear multiple times.Īll view classes must inherit from the ViewBase class and implement the onRender() method.Ī view doesn’t need to generate the entire HTML or JSON response. This directive is C++ file to include for compilation purposes. For this to work, the correct content type directive must be html, xml or C++ type used for the model. Storing markup in memory offers the highest performance at the expense of large amounts of program true, view markup is compacted by removing leading and trailing whitespace, and blank lines. If false, a markup file is generated for storing on an SD card under folder ‘web/’. Can appear multiple valid C++ identifier used for generating view class true, view markup is stored in program memory. asp files are a number of directives which are described in the table below: single line remark or comment. Examine the Hello World project if you are not familiar with the MVC design pattern.Īt the top of view. If your view source depends on a Model class, be sure it exists (or develop it if it doesn’t), and add the necessary code in the controller class method performAction() to render the view to the internet browser. Copy and paste the output code in to a file in your Arduino project. asp file in to our online MVC view builder and press the Build View Code button. It is recommended that you use a text editor like notepad++ for developing the view HTML (or JSON) source, and name your files with a ‘.asp’ file extension. If you’ve developed web pages using asp or asp.net, then it will become apparent that using our online MVC View Builder will dramatically improve productivity in the development of complex web pages that use our Arduino MVC web server: Building Views with ‘Server Scripting’Ī view class is where you would write code to generate HTML or JSON markup. Models are also used by view classes for generating responses to the browser.
You might also develop code to read sensors, control actuators and perform file IO. Developing Model ClassesĪ model class is where you would write code to act on the request parameters and posted html form values. The controller then interacts with a model (responsible for web page / service / application logic), and renders an appropriate view (html or json) back to the browser. Please watch the short demonstration video and read on before uploading the source code to your Arduino.īrowser requests are received by the controller, which analyses the request to determine what action to take.
#Arduino camera ethernet mac#
The code also demonstrates appliance control, log file monitoring and AJAX using jQuery.īe sure to change the MAC and IP address in the source code to values that are correct for your network configuration, and copy ‘web’ and ‘data’ folders to the root of the Arduino Ethernet shield SD card. The source code for the Arduino Webserver is available at the link below, and is provided as is (with no warranty). If you’ve developed web pages using server side scripting before, then this approach will be familiar. The unique advantage of using our Arduino web server (as compared to a generic Arduino web server) is that responsive web pages and web service responses can be built using a scripting style similar to asp.net.

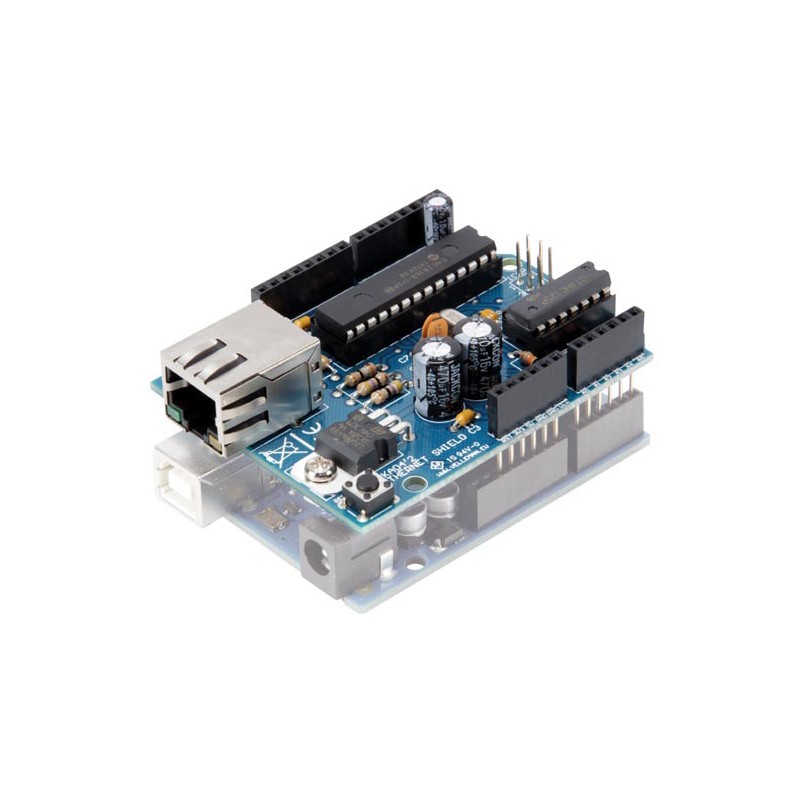

Our Arduino Ethernet shield IoT web server has been tested to work with Arduino IDE v 1.8.2, Wiznet 5100 Ethernet shield, Arduino R3 Uno and Mega 2560, and boasts the following: Use an Arduino web server to control appliances, monitor remote sensors and report using charts. Web Pages with ASP.net Like Syntax Using MVC Micro Framework
